Product Details
＋

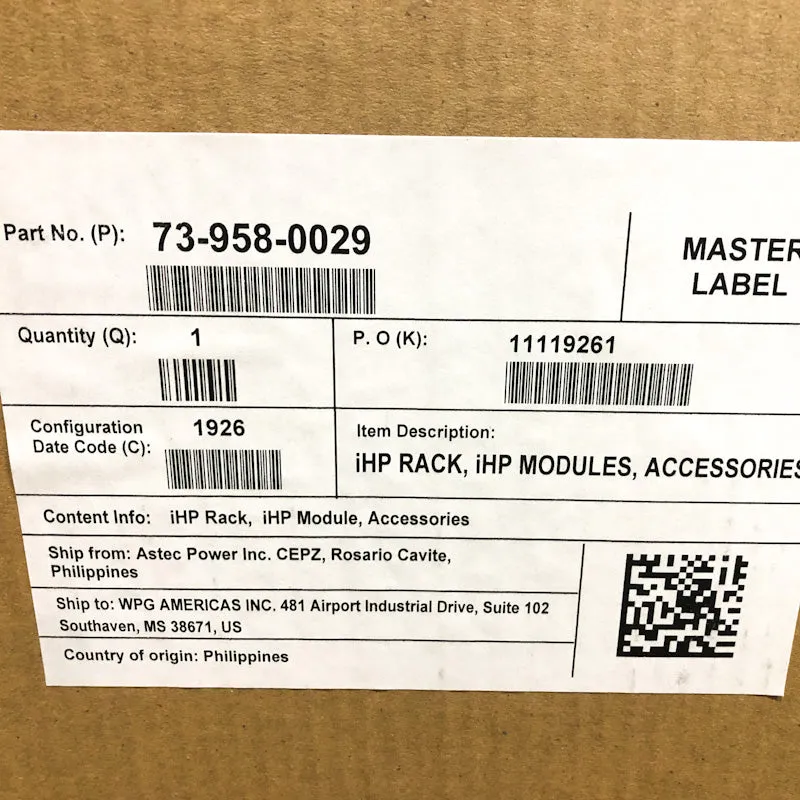

This is an Artesyn iHP 19" 12KW Low Line 1-Phase Air Cooled (iHP12L1A) Kit 73-958-0029. This kit includes iHP Artesyn 73-958-0001S, 4 x Artesyn 73-936-0048 3000W Switching Power Supplies, and iHP modules / accessories box. It comes as pictured and does not include any additional parts or accessories.
Features:
- Artesyn 73-958-0001S high power medical and ITE modular input module
- IHP12L1A 19 inch 12kW rack
- AC input range: 180~264Vac
- 4 slots
- Operating temperature range: 0~ 70°C
- Industrial safety certification: IEC/EN 60950-1, UL 60950-1
- Medical safety certification: IEC/EN 60601-1, ANSI/AAMI ES 60601-1
- 2xMOPP
- 2xMOOP
- Built-in PFC
- SEMI F47MIL-STD-810G
- Built-in fans
- High efficiency
- DC OK signal
- LED indicators for AC and DC OK
- Built-in remote On/Off
- Remote sense function
- Protections: short circuit / overvoltage / overload / overcurrent / over temperature
Included:

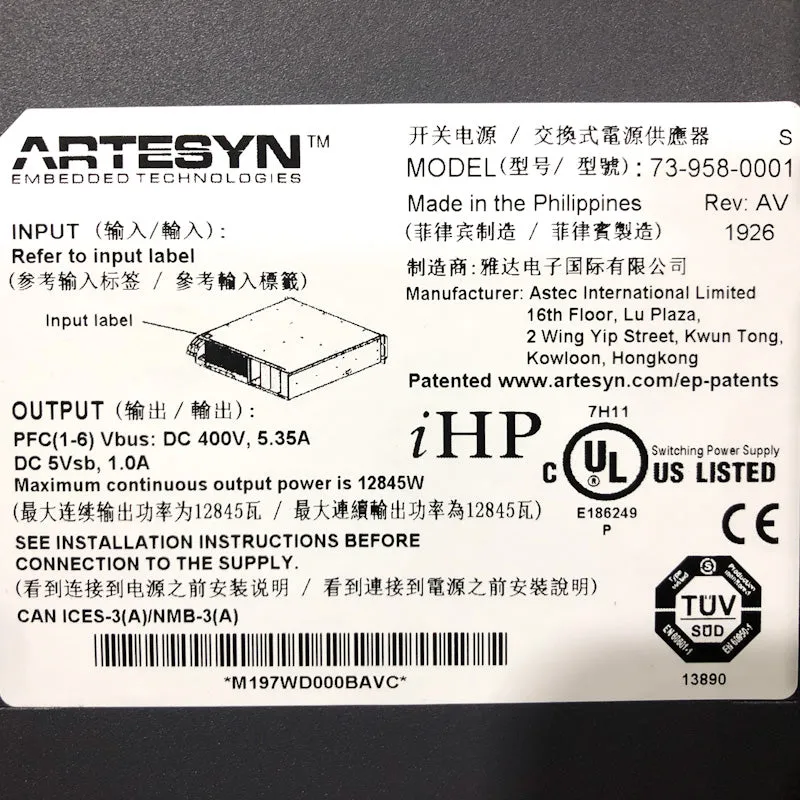

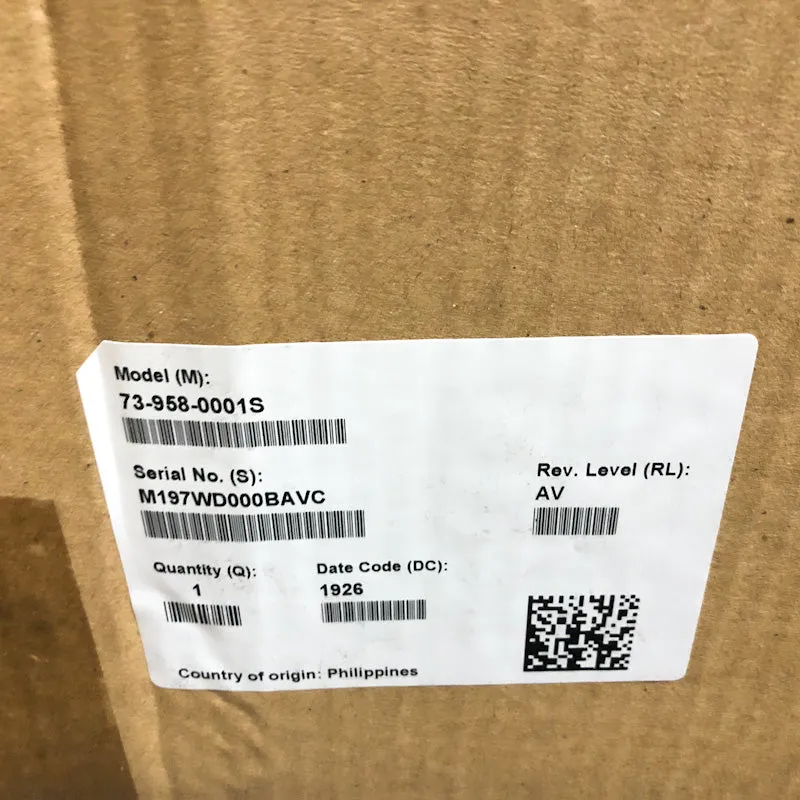

- Artesyn 73-958-0001S high power medical and ITE modular input module
- IHP12L1A 19 inch 12kW rack

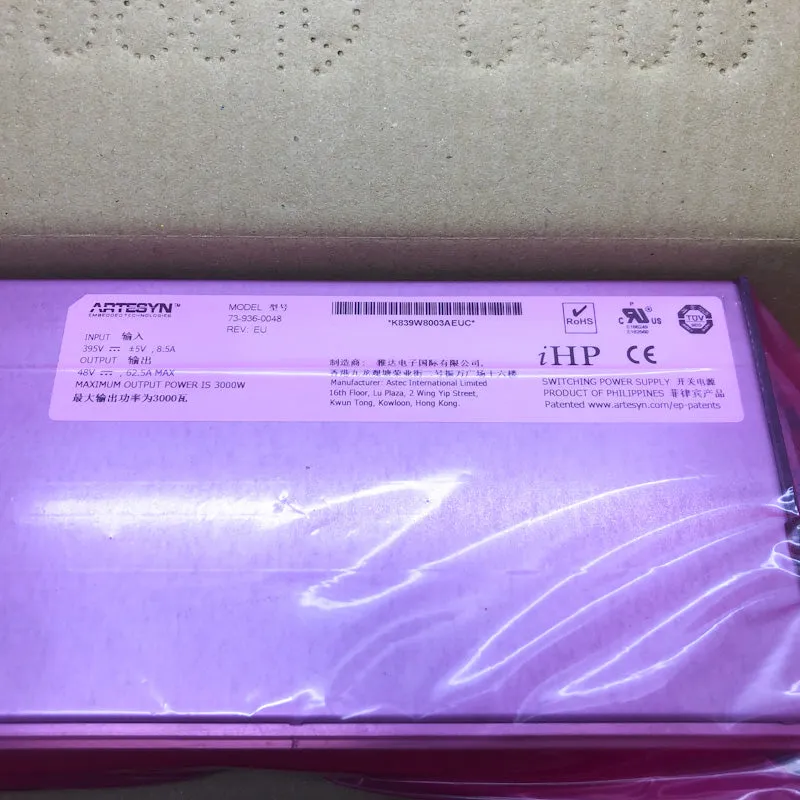

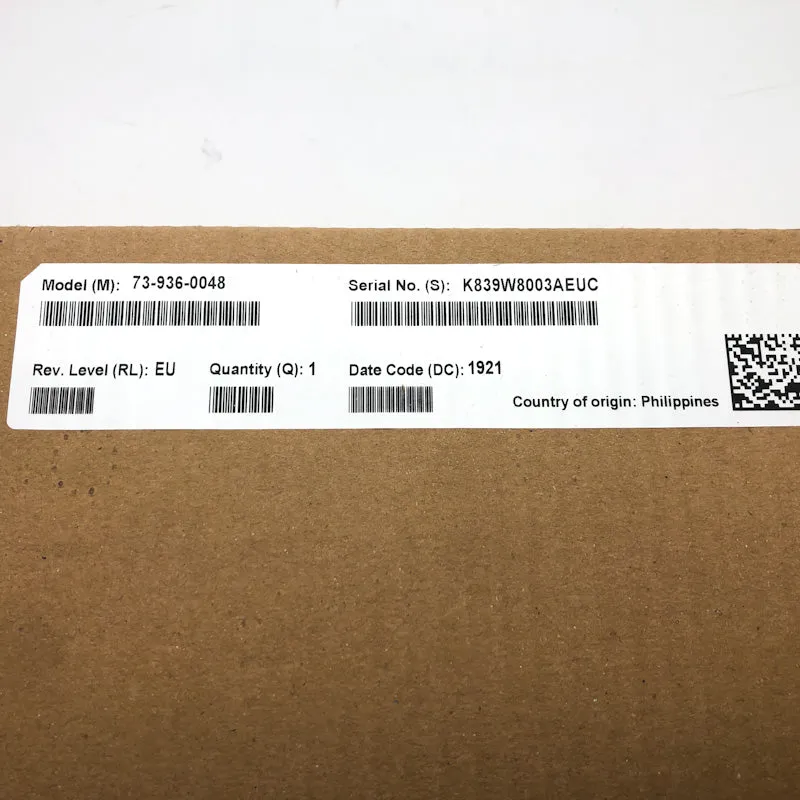

- 4 x Artesyn 73-936-0048 3000W Switching Power Supplies

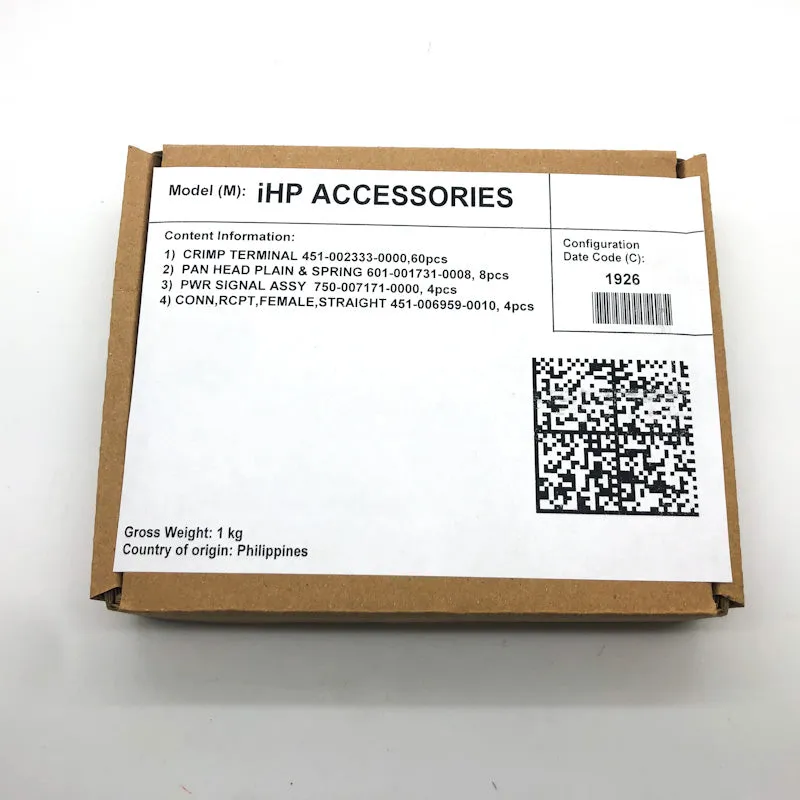

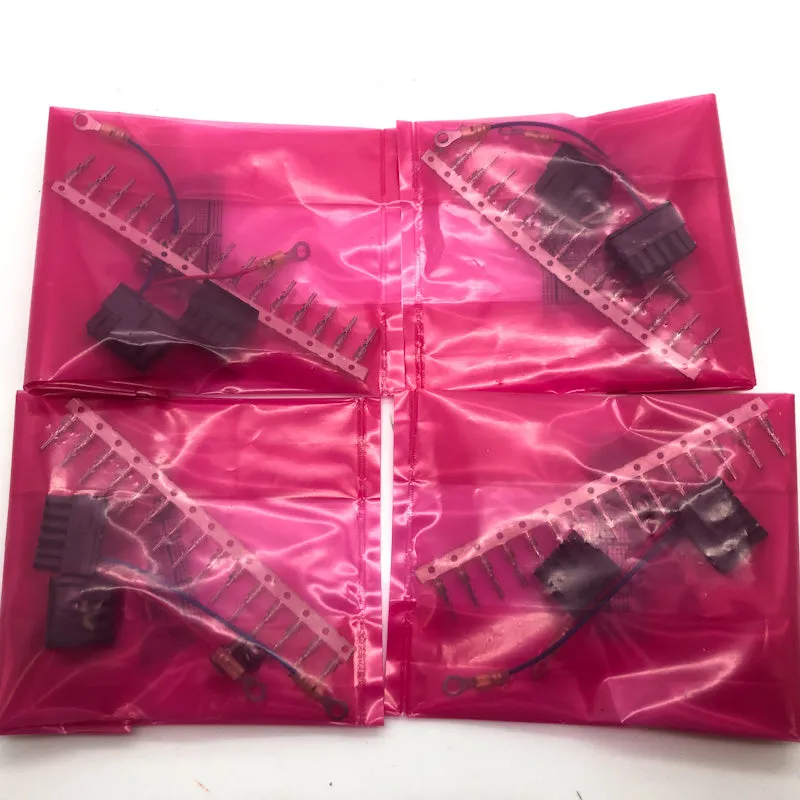

- iHP Accessories
- 1. Crimp Terminal 451-002333-0000, 60 pcs
- 2. Pan Head Plain & Spring 601-001731-0008, 8 pcs
- 3. PWR Signal Assy: 750-007171-0000, 4 pcs
- 4. CONN, RCPT, FEMALE, STRAIGHT 451-006959-0010, 4 pcs
