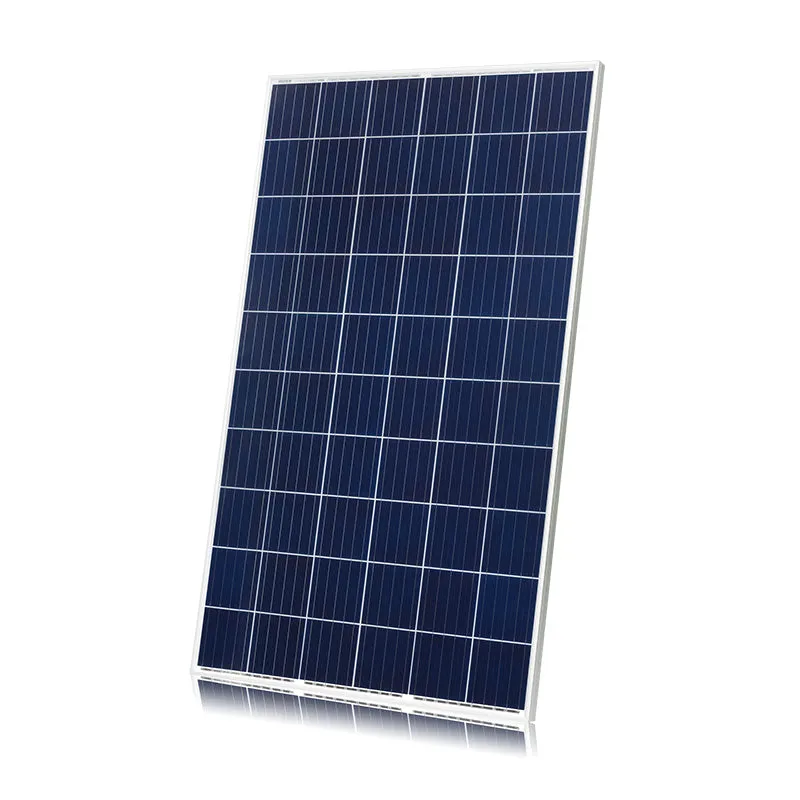

Advantages of Monocrystalline Silicon Solar Panel

• CNBM Solar performance guarantees for 25 years.

• Quality Products certified (SGS, IEC, TÜV,CE).

• Comprehensive Certificates (IEC61215, IEC61730)

Products Characteristics

• Widely using of the most popular and mature type of modules for off-grid system.
• Leading manufacturing technology in PV industry, strictly controlling the quality of raw materials and the process of producing.
• 100% EL inspection, ensures modules are defects free.
• Cells binned by current to improve module performance.
• Anti-reflective glass. Not only to increase the light absorption, but also to make the module has the function of self-cleaning in water environment, effectively reducing the power loss caused by dust.
• Outstanding performance in low-light irradiance environments.
• Excellent mechanical load resistance: Certified to withstand high wind loads(2400pa) and snow loads(5400pa).
• High salt and ammonia resistance.
• Positive power tolerance:0- 5w.

Warranty

• 10 years product warranty.
• 10-years 90% of Min. rated output power, and 25-years 80% of Min. rated output power warranty.

Raw materials and Mechanical Parameters

• Type of Cells(mm): Mono 99.5 x 182
• NO. of Cells and Connections: 4 ×19 =76
• Dimensions(mm)(L*W*H): 1956mm × 765mm × 30
• Weight(kg): 17
• Glass: 3.2mm Tempered Glass.
• Encapsulation: EVA.
• Backsheet: Multilayer Composite.
• Aluminium-Frame: Silver/Black Anodized aluminium alloy.
• Junction-Box: IP67/IP68
• Cable: 4mm², 900mm.
• Connector: MC4 and MC4 Compatible

Performance Parameters

• Maximum System Voltage: 1000V
• Operating Temperature: -45~ 80°C
• Maximum Series Fuse: 20A
• Maximum Static Load, Front Side (e.x. Snow, Wind): 5400PA
• Maximum Static Load, Back Side (e.x. Wind): 2400PA
• Application Grade: Class A

Electrical Parameters

• Rated Maximum Power: 330W.
• Power Tolerance: 0 - 5W
• Module Efficiency: 24.6%

• Open Circuit Voltage: 53.57V.
• Max Power Voltage: 46.39V.
• Short Circuit Current (Isc): 7.38A.
• Max Power Current(Imp): 7.13A.
• Temperature Coefficient of Isc: 0.6%
• Temperature Coefficient of Voc -0.33%
• Temperature Coefficient of Pmp: -0.45%

Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
