Product Details
＋

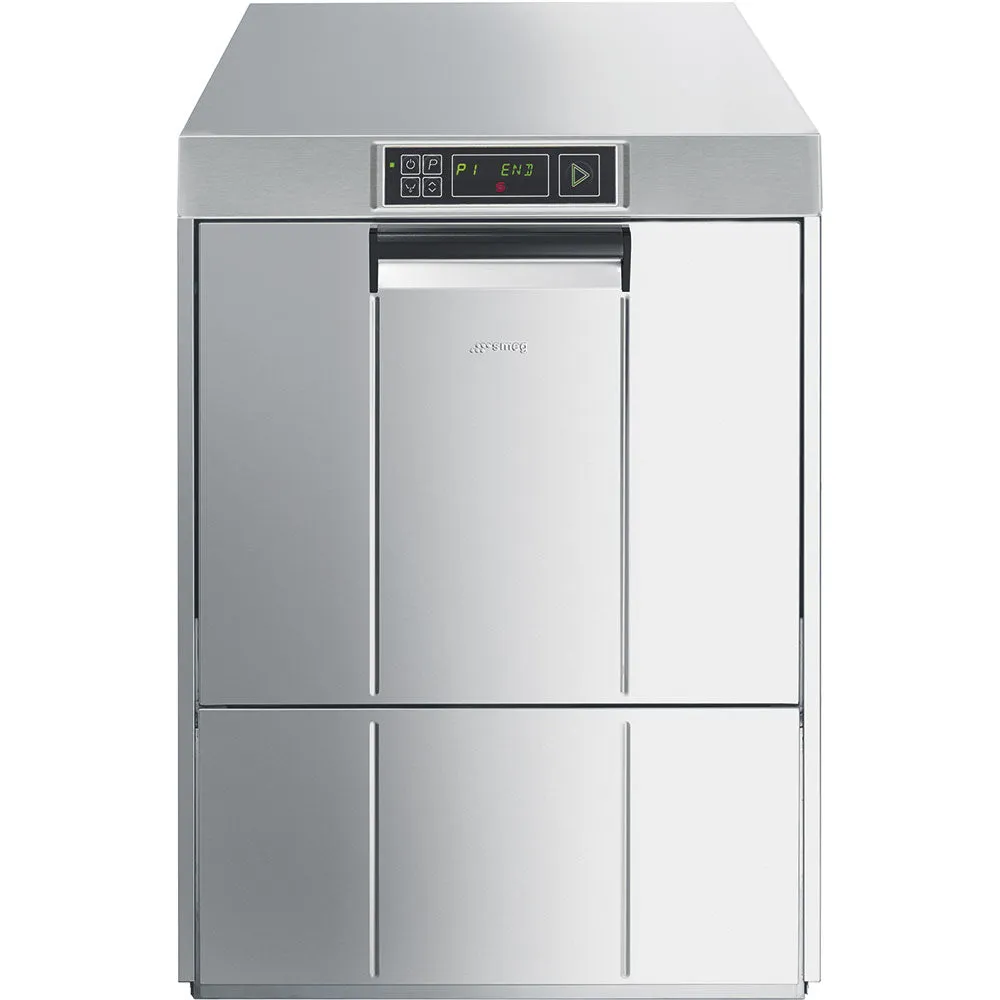

Smeg Topline range Undercounter Glasswasher with integral softener, 7 Wash Programs 500x500 SPG515SUK
The Topline range is completely developed and manufactured in our Italian factory for the requirements of the food service and catering markets. A patented rinsing system ensures optimal washing results. With the combination of aesthetic design and functionality, the SMEG commercial glass and dishwashers enable a reduction in water and energy consumption, excellent washing results as well as compliance with the highest hygienic standards.
- Fully double skinned and insulated construction in AISI 304 stainless steel
- Moulded deep drawn wash tank with rounded corners
- 2x wash arms in AISI 304 stainless steel
- 2x rinse arms in AISI 304 stainless steel
- Counterbalanced and insulated door with gasket
- Usable wash height 300mm
- Automatic partial water exchange in the wash tank via the drain pump
- Rinse booster pump offers (HTR) rinse via atmospheric boiler
- Three-stage dynamic filter system
- Drain pump
- WRAS compliant break tank

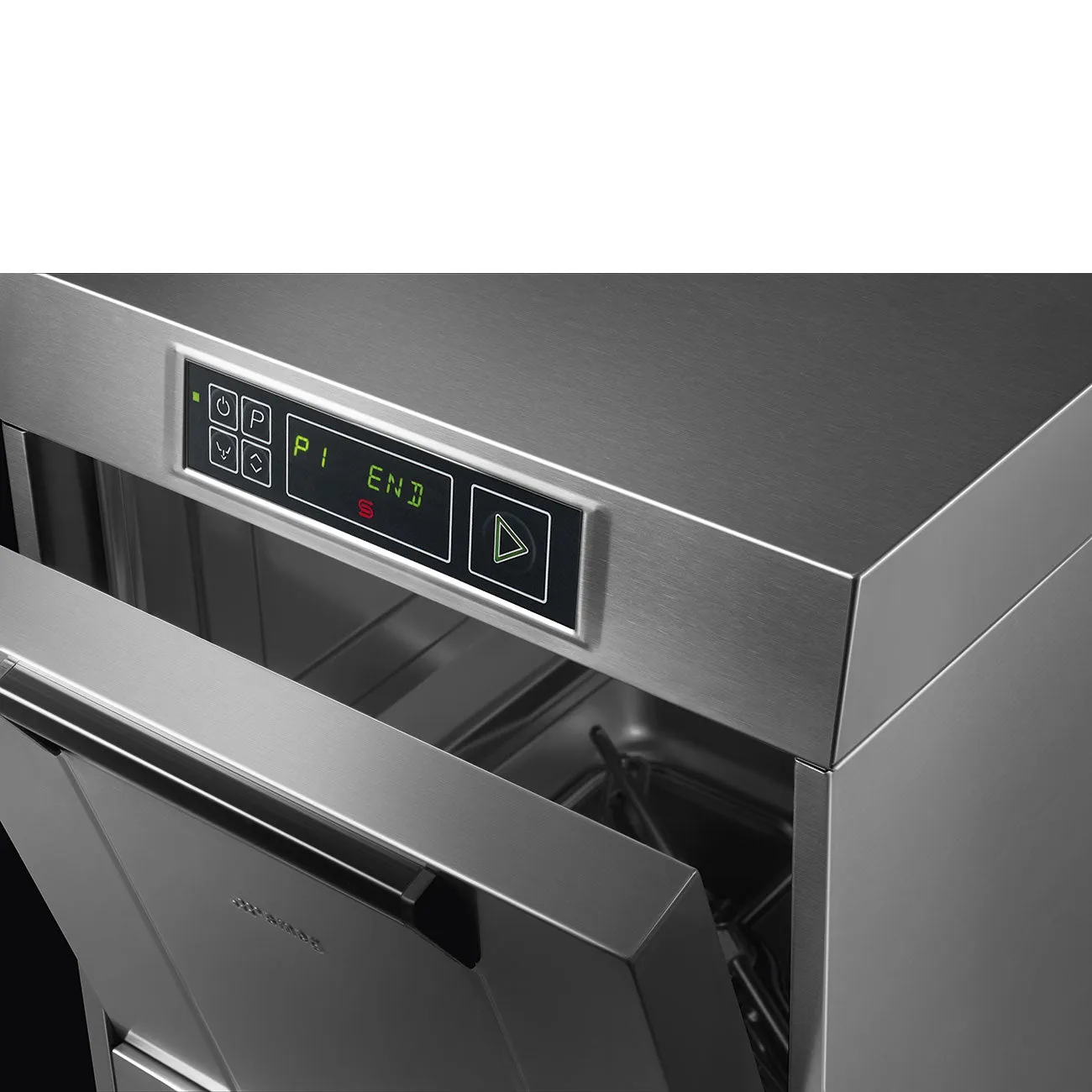

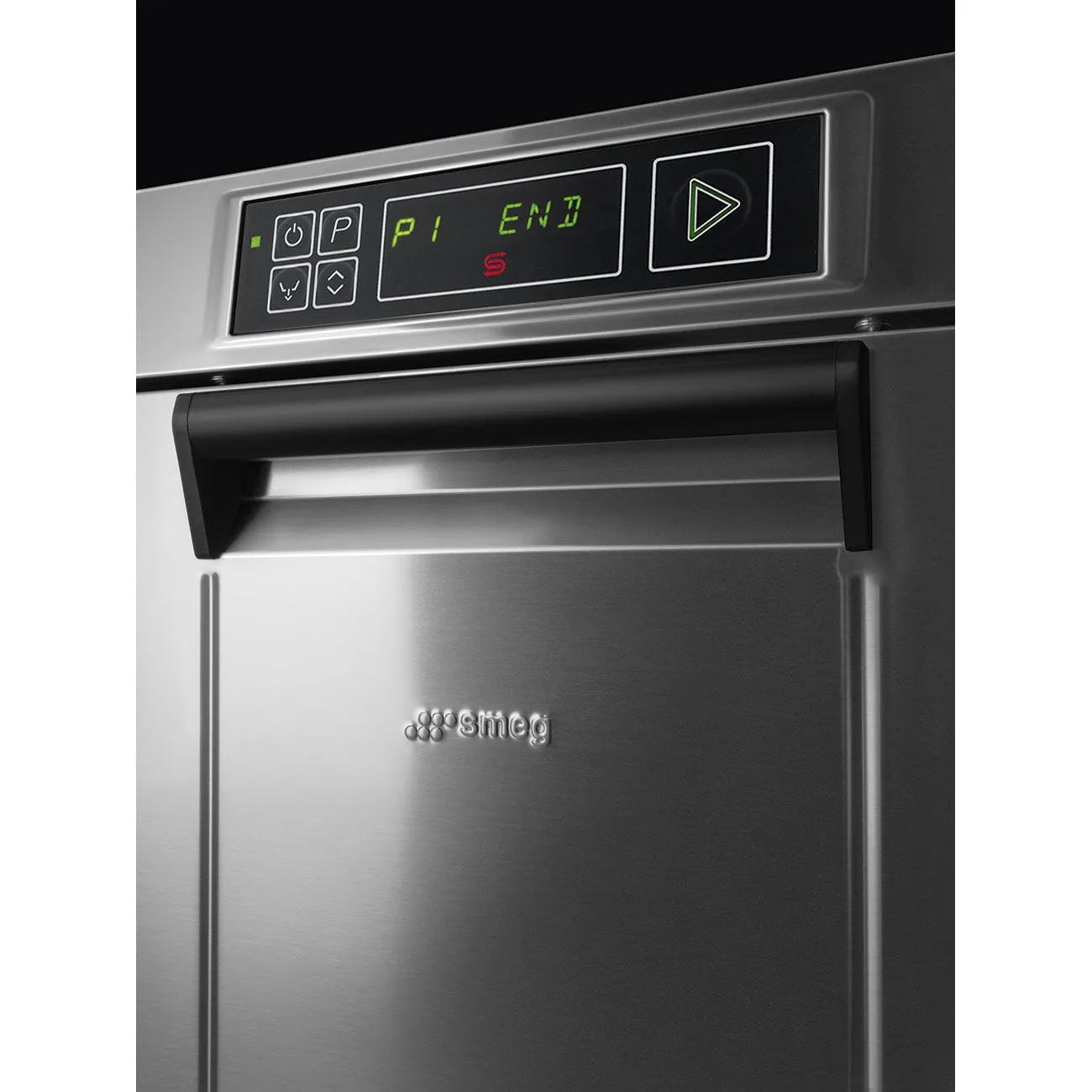

- Fully electronic control panel with soft touch buttons
- 7 tailored wash programs with optional freshwater and extended rinse options
- Wash pump with soft start
- Thermo stop for guaranteeing the rinse water temperature
- Stand-by function to limit the activity of the heating elements during periods of non-use
- Self cleaning cycle on drain down
- Self-diagnosis system with error messages
- Electronically controlled peristaltic detergent and rinse aid dispensers
| Specification | Value |
|---|---|
| Product Family | Dishwasher |
| Subfamily | Undercounter glasswasher |
| Basket dimensions | 500x500 mm |
| Default power supply | 230 V~ / 32 A / 7.3 kW / 50 Hz |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 820 mm |
| Depth with door open | 1020 mm |
| Usable load height | 415 mm |
| Functions | Triple filter, Door clearance 307 mm |
| Programs | Boiler 71°C/Tank 60°C-1’20"; Boiler 85°C/Tank 60°C-1’10"; Boiler 85°C/Tank 60°C-2’; Boiler 85°C/Tank 60°C-3’; Boiler 71°C/Tank 60°C-2’10"; Boiler 85°C/Tank 60°C-4’10" |
| Drain and self-cleaning cycle | Yes |
| Maximum baskets/hour | 51 |
| Maximum plates/hour | 918 |
| Panel | Easyline 2016 |
| Display | 8 digit |
| Number of buttons | 5 |
| On/off indicator | Yes |
| Low rinse aid alert | Yes |
| Low detergent alert | Yes |
| Cycle progress indicator | Yes |
| End of cycle indicator | Yes |
| Manual diagnostics | Yes |
| Tank construction | Deep drawn, Double skinned |
| Tank material | Stainless steel AISI 304 |
| Tank filter | Stainless steel |
| Door | Double skinned |
| Back panel | Galvanized |
| Counterbalanced door | Yes |
| Wash arm | Stainless steel AISI 304 |
| Rinse arm | Stainless steel AISI 304 |
| Door gasket | On 3 sides |
| Rack guides | Embossed |
| Wash tank capacity | 11 l |
| Boiler capacity | 6 l |
| Noise level | Lpa 56.5 dBA |
| Protection class | IPX4 |
| Adjustable feet | 0-15 mm |
| Drain max. height | 600 mm |
| Tank heating element | 2000 W |
| Boiler heating element | 6100 W |
| Wash pump | 700 W |
| Default connection | 7300 W |
| Electrical connection options | 230 V~ / 15 A / 3.3 kW / 50 Hz (NC); 230 V~ / 12 A / 2.7 kW / 50 Hz (NC); 230 V~ / 20 A / 4.5 kW / 50 Hz (NC); 230 V~ / 30 A / 6.8 kW / 50 Hz (NC); 400 V 3N~ / 12 A / 6.8 kW / 50 Hz (NC); 400 V 3N~ / 12 A / 7.3 kW / 50 Hz |
| Water consumption per cycle | 3.2 l |
| Water inlet pressure | 1-6 bar / 100-600 kPa |
| Warm water connection | Cold 15°C |
| Inlet water maximum temperature | 60°C |
| Max water hardness | 12°fH - 7°dH |
| Dimensions | 600x600x820 mm |
| Packed width | 660 mm |
| Packaged depth | 700 mm |
| Height (mm) packed | 990 mm |
| Gross weight (kg) | 72 |
| Integral continuous water softener | Yes |
| Detergent (red) hose length | Yes, manual |
| Peristaltic detergent pump | Yes, electronic control |
| Detergent flow rate | 1.5 l/h |
| Peristaltic rinse aid pump | Yes, electronic control |
| Rinse aid (blue) hose length | Yes, manual |
| Soft Start | Yes |
| Rinse aid flow rate | 0.4 l/h |
| Boiler thermostop | Yes |
| Cycle counter | Yes |
| Chemical dosing | gr/lt |
| Drain pump with 3-stage filter system | Yes |
| Rinse pump with H.T.R. system | Rinse pump with atmospheric boiler |
| Break tank | Yes |
| Partial water exchange in the wash tank via built-in drain pump | Yes |
| Automatic start | Yes |
| Chemical level probe | Yes, optional KITSONLIV |
| 1/1GN tray washing option | Yes |
