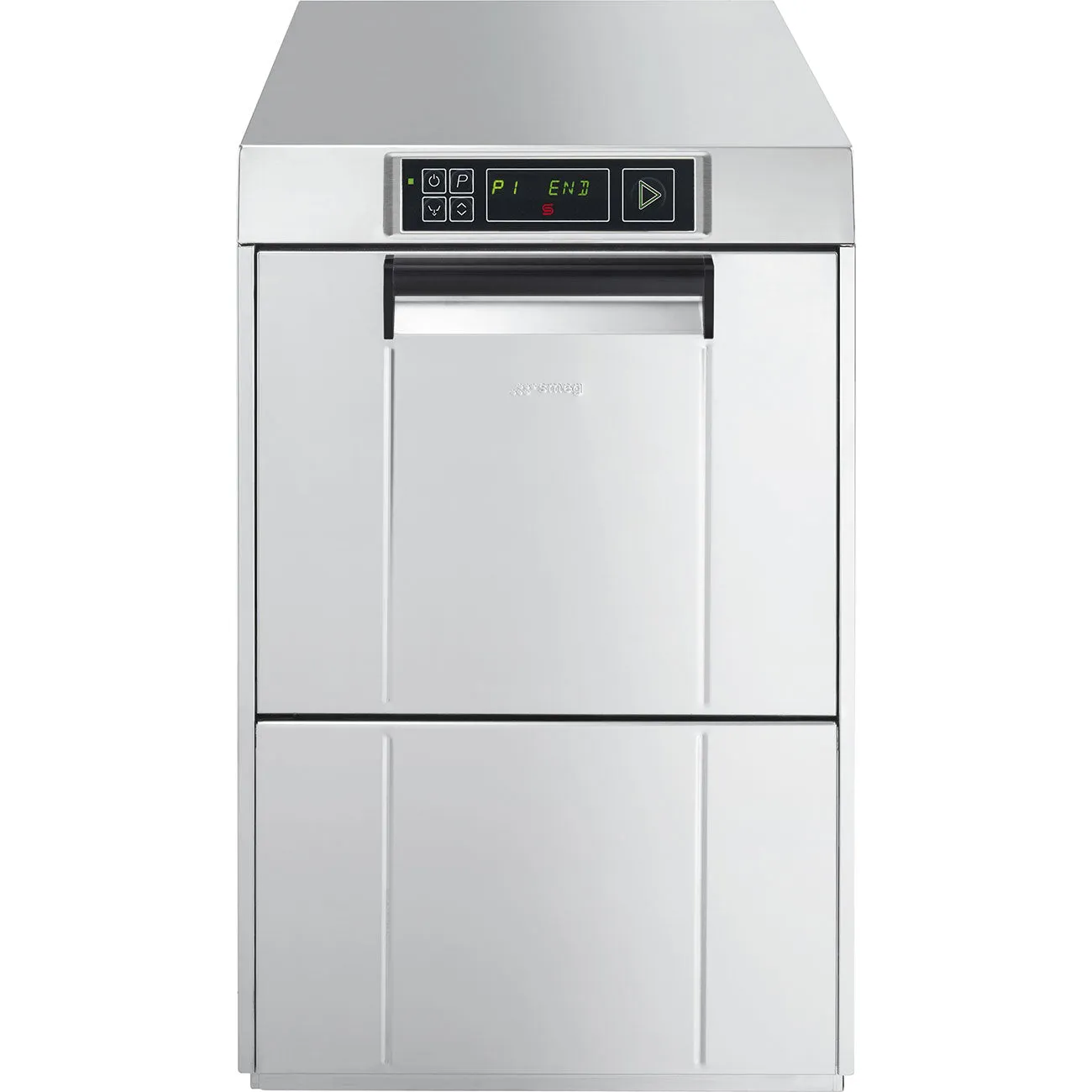

Smeg Topline range Undercounter Glasswasher with integral softener, 7 Wash Programs 400x400 UG415DSUK
The Topline range is completely developed and manufactured in our Italian factory for the requirements of the food service and catering markets. A patented rinsing system ensures optimal washing results. With the combination of aesthetic design and functionality, the SMEG commercial glass and dishwashers enable a reduction in water and energy consumption, excellent washing results as well as compliance with the highest hygienic standards.
- Fully double skinned and insulated construction in AISI 304 stainless steel
- Moulded deep drawn wash tank with rounded corners
- 2x wash arms in AISI 304 stainless steel
- 2x rinse arms in AISI 304 stainless steel
- Counterbalanced and insulated door with gasket
- Usable wash height 300mm
- Automatic partial water exchange in the wash tank via the drain pump
- Rinse booster pump offers (HTR) rinse via atmospheric boiler
- Three-stage dynamic filter system
- Drain pump
- WRAS compliant break tank
- Fully electronic control panel with soft touch buttons
- 7 tailored wash programs with optional freshwater and extended rinse options
- Wash pump with soft start
- Thermostop for guaranteeing the rinse water temperature
- Stand-by function to limit the activity of the heating elements during periods of non-use
- Self cleaning cycle on drain down
- Self-diagnosis system with error messages
- Electronically controlled peristaltic detergent and rinse aid dispensers
Property | Value |
---|---|
Series | Topline |
Basket dimensions | 400 x 400 mm |
Default power supply | 230 V~ / 12 A / 2.6 kW / 50 Hz |
Width | 460 mm |
Depth | 600 mm |
Height | 705 mm |
Depth with door open | 930 mm |
Usable load height | 300 mm |
Maximum plate diameter | 300 mm |
Maximum glass height | 300 mm |
