Product Details
＋

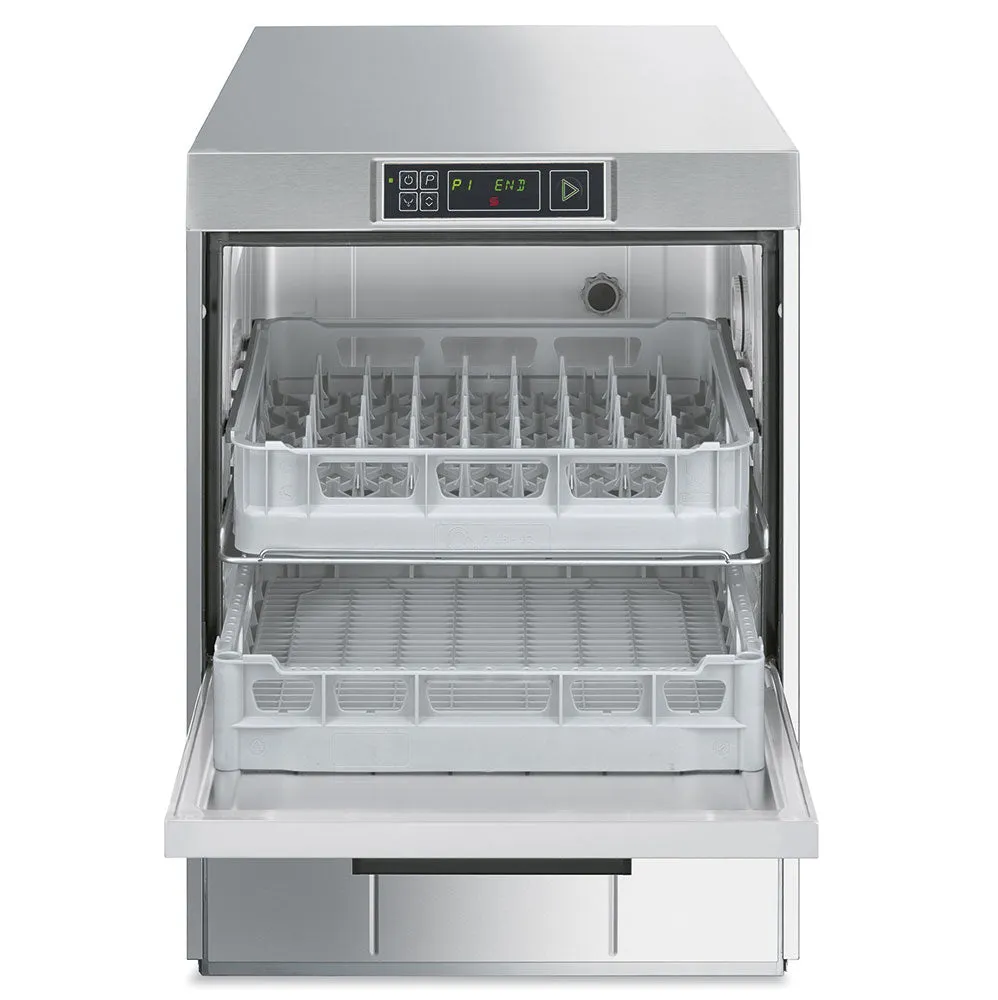

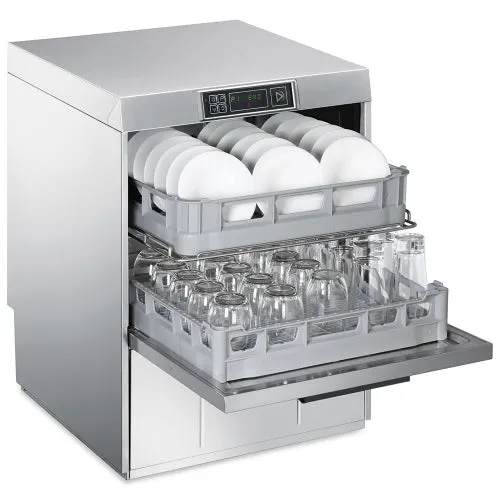

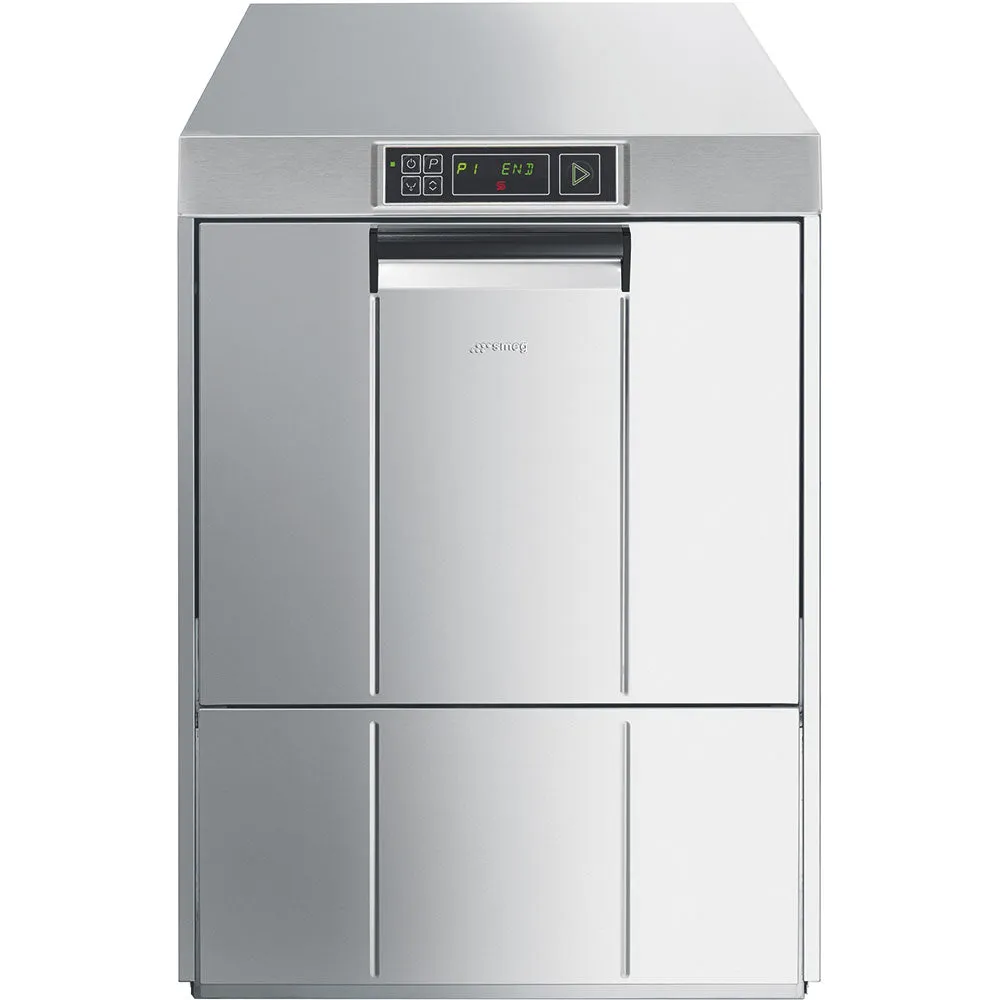

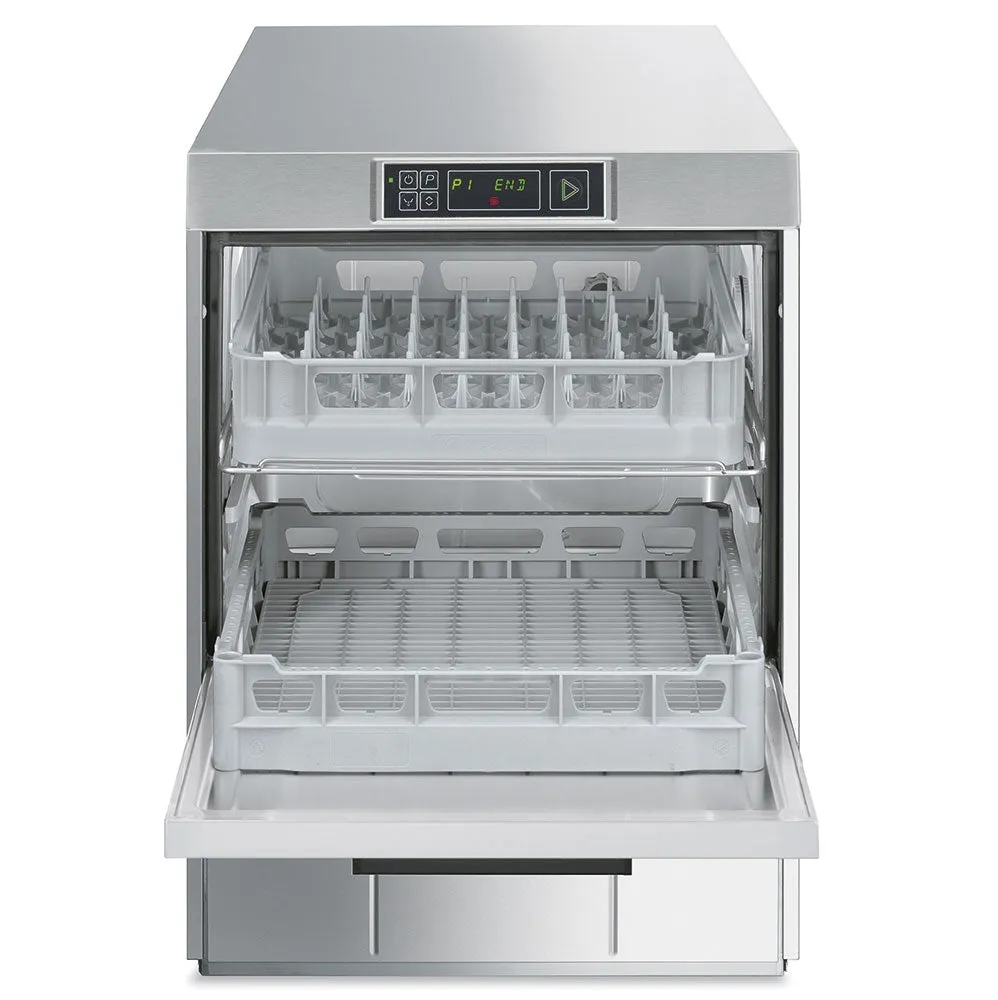

Smeg Topline Undercounter Twin Basket Dishwasher, 7 Wash Programs 500x500 SPD512SUK with softener
The Topline range is completely developed and manufactured in our Italian factory for the requirements of the food service and catering markets. A patented rinsing system ensures optimal washing results. With the combination of aesthetic design and functionality, the SMEG commercial glass and dishwashers enable a reduction in water and energy consumption, excellent washing results as well as compliance with the highest hygienic standards.
- Fully double skinned and insulated construction in AISI 304 stainless steel
- Moulded deep drawn wash tank with rounded corners
- 2x wash arms in AISI 304 stainless steel
- 2x rinse arms in AISI 304 stainless steel
- Counterbalanced and insulated door with gasket
- Usable wash height 300mm
- Double rack system with extractable support, washing two baskets simultaneously; upper basket for plates/saucers, lower basket for glasses/cups.
- Automatic partial water exchange in the wash tank via the drain pump
- Rinse booster pump offers (HTR) rinse via atmospheric boiler
- Three-stage dynamic filter system
- Drain pump
- WRAS compliant break tank
- Fully electronic control panel with soft touch buttons
- 7 tailored wash programs with optional freshwater and extended rinse options
- Wash pump with soft start
- Thermostop for guaranteeing the rinse water temperature
- Stand-by function to limit the activity of the heating elements during periods of non-use
- Self cleaning cycle on drain down
- Self-diagnosis system with error messages
- Electronically controlled peristaltic detergent and rinse aid dispensers
| Category | Details |
|---|---|
| TYPE | |
| Subfamily | Undercounter Dishwasher |
| Type | Double basket |
| Basket dimensions | 500x500 mm |
| Default power supply | 230 V~ / 22 A / 5.0 kW / 50 Hz |
| Dual Heating function | Yes |
| Width | 600 mm |
| Depth | 600 mm |
| Height | 820 mm |
| Depth with door open | 1020 mm |
| Usable load height | 415 mm |
| Configuration 1 | Lower basket maximum height for glasses / upper basket for dishes: 110 mm and 225 mm |
| Configuration 2 | Lower and upper basket set at maximum height: 190 mm and 145 mm |
| AESTHETICS | |
| Series | Topline |
| Led colour | Green |
| FUNCTIONS | |
| Functions | GN 1/1 trays washing, Triple filter, HTR, Double basket, Door clearance 415mm |
| PROGRAMMES | |
| Programs | Boiler 85°C/Tank 60°C-1’10"; Boiler 85°C/Tank 60°C-1’30"; Boiler 71°C/Tank 60°C-2’; Boiler 85°C/Tank 60°C-2’30"; Boiler 71°C/Tank 60°C-2’10"; Boiler 85°C/Tank 60°C-4’10" |
| Drain and self cleaning cycle | Yes |
| Maximum baskets/hour | 40 |
| Maximum plates/hour | 720 |
| TECHNICAL FEATURES | |
| Tank heating element | 2000 W |
| Boiler heating element | 6100 W |
| Wash pump | 700 W |
| Default connection | 5000 W |
| Electrical connection options | 230 V~ / 20 A / 4.5 kW / 50 Hz (NC) |
| Water consumption per cycle | 3.2 l |
| Water inlet pressure | 1-6 bar / 100-600 kPa |
| Warm water connection | Cold 15°C |
| Inlet water maximum temperature | 60°C |
| Max water hardness | 12°fH - 7°dH |
| INTERFACE | |
| Panel | Easyline 2016 |
| Display | 8 digit |
| On/off indicator | Yes |
| Low rinse aid alert | Yes |
| Low detergent alert | Yes |
| Cycle progress indicator | Yes |
| End of cycle indicator | Yes |
| Manual diagnostics | Yes |
| CONSTRUCTION | |
| Tank | Deep drawn |
| Tank construction | Double skinned |
| Tank material | Stainless steel AISI 304 |
| Tank filter | Stainless steel |
| Door | Double skinned |
| Back panel | Galvanized |
| Counter balanced door | Yes |
| Wash arm | Stainless steel AISI 304 |
| Rinse arm | Stainless steel AISI 304 |
| Door gasket | On 3 sides |
| Rack guides | Embossed low, telescopic up |
| Wash tank capacity | 11 l |
| Boiler capacity | 6 l |
| Protection class | IPX4 |
| Adjustable feet | 0-15 mm |
| Drain max. height | 600 mm |
| LOGISTIC INFORMATION | |
| Dimensions | 600x600x820 mm |
| Packed width | 660 mm |
| Packaged depth | 700 mm |
| Height (mm) packed | 990 mm |
| Dimensions of the packed product (mm) | 990x660x700 |
| Gross weight (kg) | 73 |
| EQUIPMENT | |
| Integral continuous water softener | Yes |
| Detergent (red) hose length | Yes, manual |
| Peristaltic detergent pump | Yes, electronic control |
| Detergent flow rate | 1.5 l/h |
| Peristaltic rinse aid pump | Yes, electronic control |
| Rinse aid (blue) hose length | Yes, manual |
| Soft Start | Yes |
| Rinse aid flow rate | 0.4 l/h |
| Boiler thermo stop | Yes |
| Cycle counter | Yes |
| Chemical dosing | gr/lt |
| Drain pump with 3 stage filter system | Yes |
| Rinse pump with H.T.R. system | Rinse pump with atmospheric boiler |
| Break tank | Yes |
| Partial water exchange in the wash tank via built-in drain pump | Yes |
| Automatic start | Yes |
| Chemical level probe | Yes, optional KITSONLIV |
| Double basket option | Yes |
| 1/1GN tray washing option | Yes |
