Product Details
＋

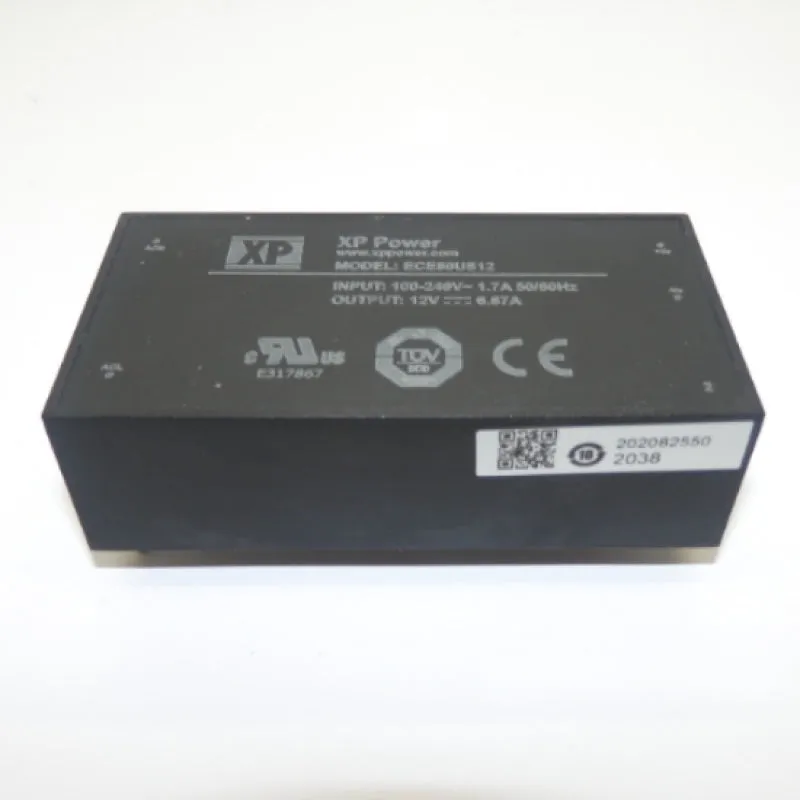

The ECE80 series of compact encapsulated AC-DC power modules are available in both PCB &
chassis mount versions offering exceptional power density of >11W/in3 . Output voltages are available from 12 – 48 VDC and these “green power” modules offer high active mode efficiency and low no load power consumption. They also provide a peak load capability up to 130% of nominal power for up to 30s and a wide operating temperature range from -40 to 70°C.
Specifications:
- Configuration: Encapsulated
- Dimensions: 3.6 L x 1.8 W x 1.1 H in
- Input Voltage Range: 85-264 VAC
- Mounting Type: PCB Mount
- Number of Outputs: 1
- Operation: Switching
- Output Current: 6.67 A
- Output Power: 80 W
- Output Voltage: 12 VDC
- Primary Type: AC-DC
- Series: ECE80 Series
- Input Voltage Range: 85-264 VAC
- Mounting Type: PCB Mount
- Number of Outputs: 1
- Operation: Switching
- Output Current: 6.67 A
- Output Power: 80 W
- Output Voltage: 12 VDC
- Primary Type: AC-DC
- Series: ECE80 Series
